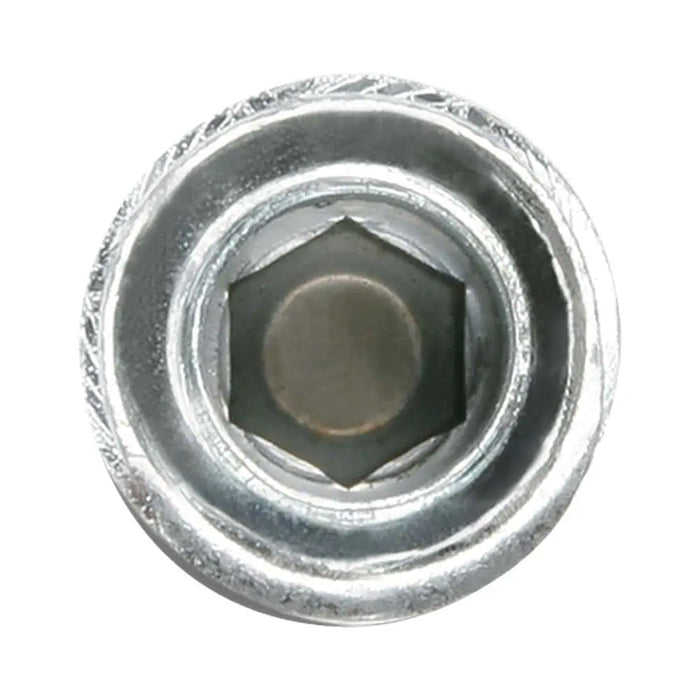

DeWalt SNAKE+® 3/8" x 1/2" Internally Threaded Screw Anchor - 50 Qty
Package Quantity: 50
100% Satisfaction Guaranteed
We'll exchange or refund any product that doesn't meet your expectations.
The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete and concrete over steel deck. The Snake+ screw anchor is installed into a drilled hole with a power tool and a Snake+ setting tool. After installation a steel element is threaded into the anchor body.
Features
- Cracked concrete approved alternative to a dropin anchor
- Designed for use in holes drilled with standard ANSI carbide drill bits
- Anchor design allows for shallow embedment and mechanically interlocks with base material
- Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
- Fast anchor installation with a powered impact wrench
- Hammer not used for installation
Applications
- Suspending conduit, cable trays and strut
- Interior low level corrosion environment
- Tension zone / cracked concrete
- Seismic attachments (SDC A - F)
- Fire sprinklers and pipe supports
- Suspended lighting
Specifications
- Anchor Materials: Carbon steel
- Internal Thread Version: Unified coarse thread (UNC)
- Finish: Zinc plated
- Anchor Size: 3/8"
- Anchor Diameter Outside: 1/2"
- Internal Thread Depth: 3/8"-16
- Quantity: 50
- Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Concrete over steel deck
- Approvals & Listings: (ICC-ES), ESR-2272 for concrete; code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC, Tested in accordance with ACI 355.2 and ICC-ES AC193 for use in concrete under the design provisions of ACI 318 (-19 and -14) Chapter 17 or ACI 318-11 (Appendix D), Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and un cracked concrete including seismic and wind loading (anchor Category 1), Evaluated and qualified by an accredited independent testing laboratory for reliability against brittle failure, e.g. hydrogen embrittlement, Evaluated and qualified by an accredited independent testing laboratory for supplemental recognition in redundant fastening applications, FM Global (Factory Mutual) - 3/8" diameter, see FM Approval
