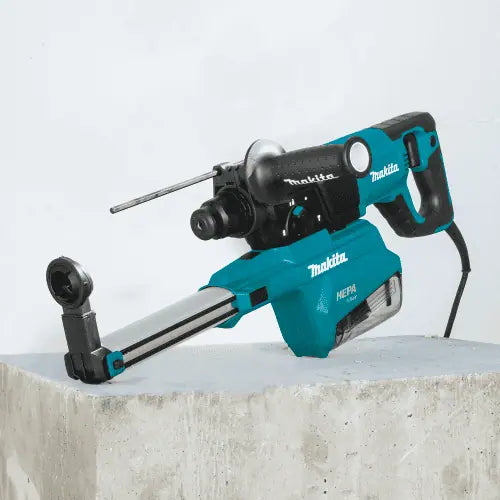

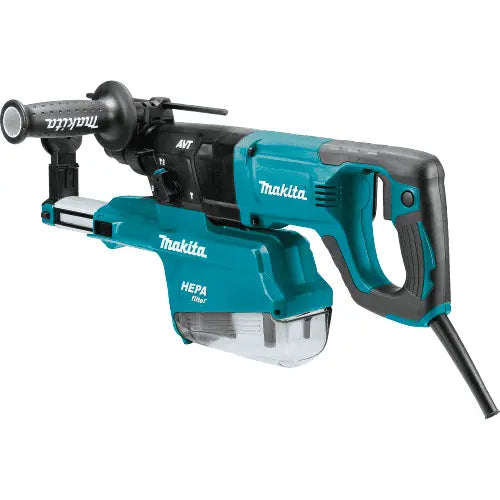

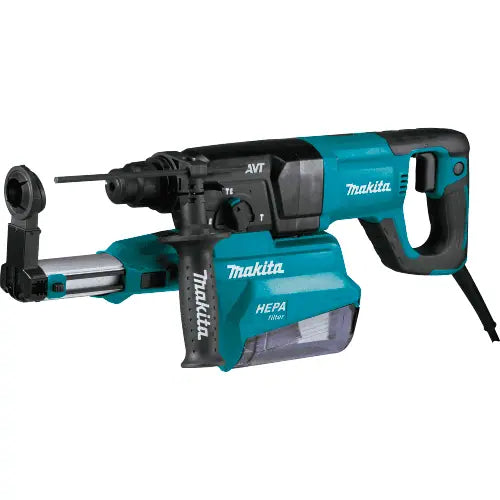

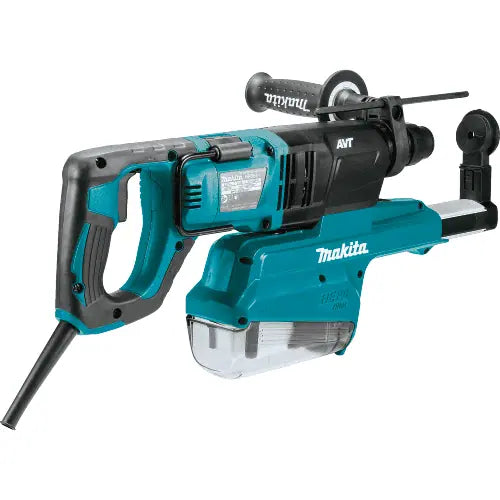

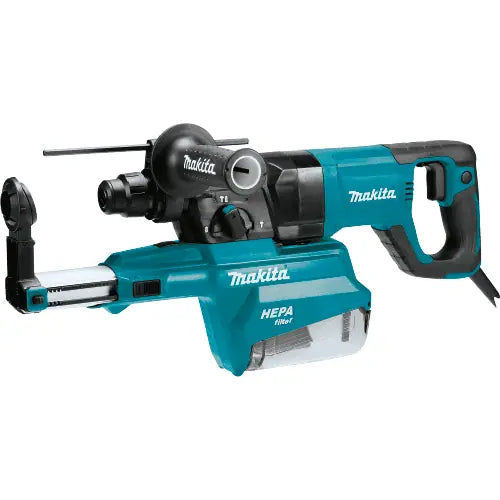

Makita SDS-PLUS AVT‚® 1" D-handle Rotary Hammer with HEPA Dust Extractor

Features

• Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications

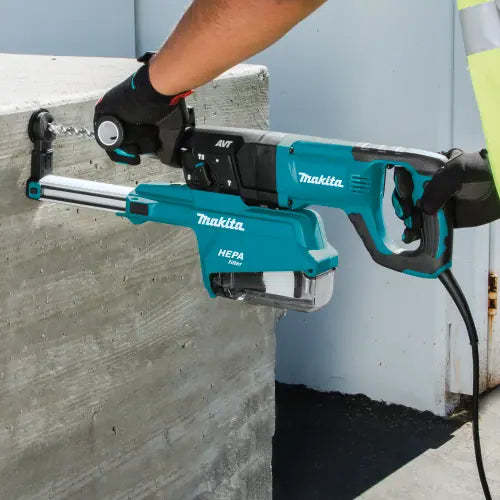

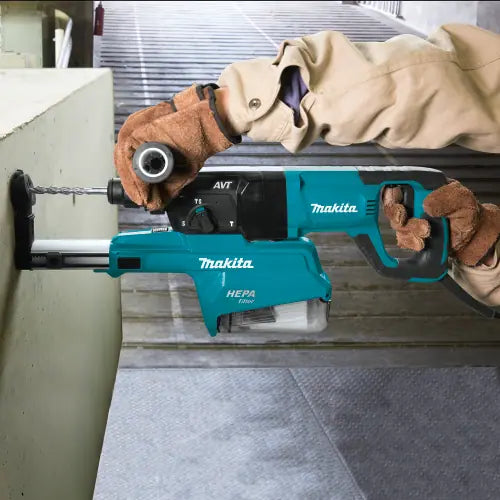

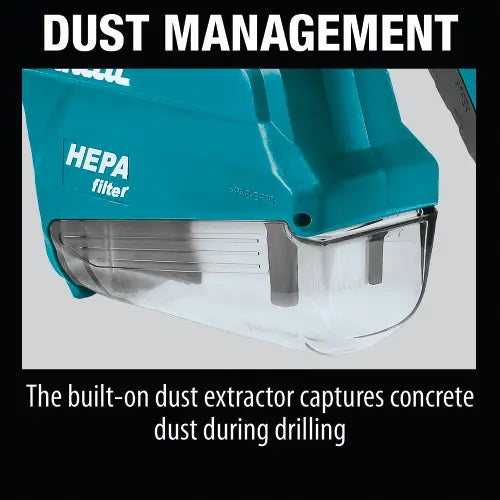

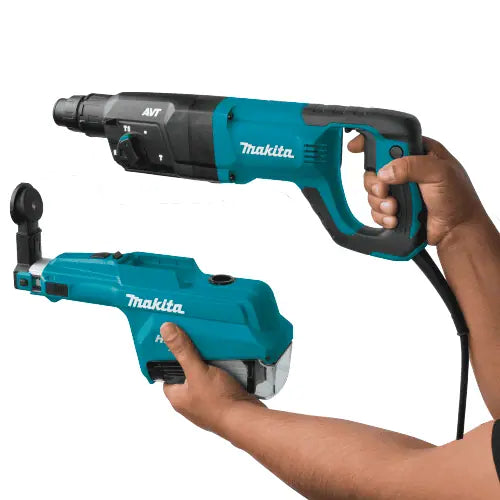

• On-board dust extractor captures concrete dust during drilling and is activated by the tool for operator convenience

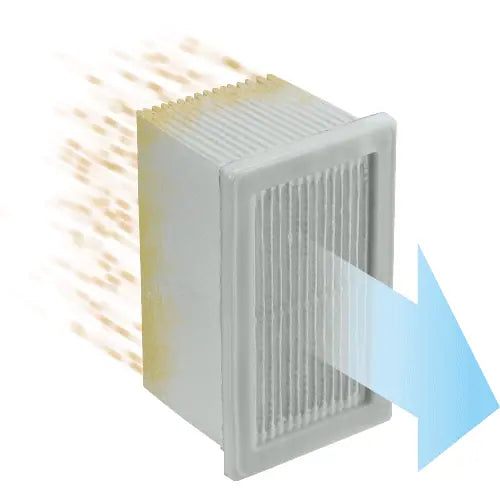

• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger

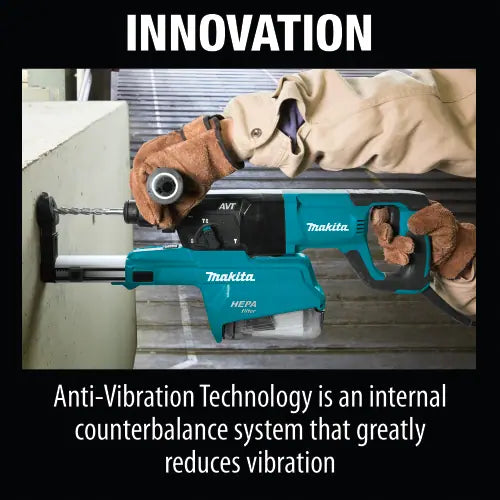

• Anti-Vibration Technology (AVT®) is an internal counterbalance system that actively works to reduce vibration to the operator

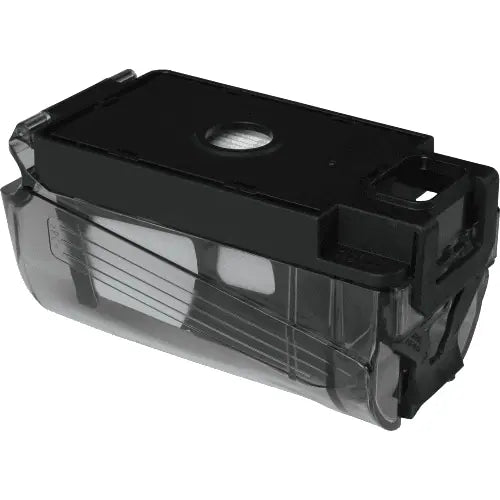

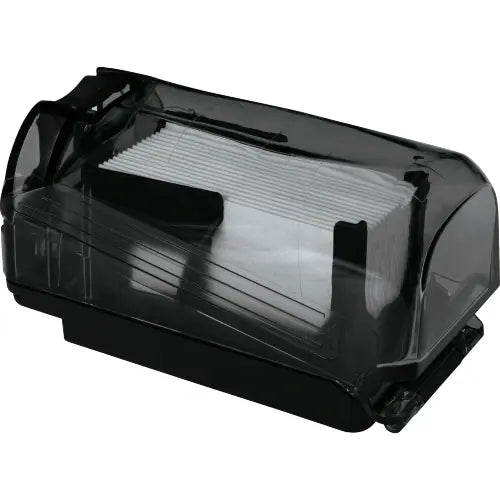

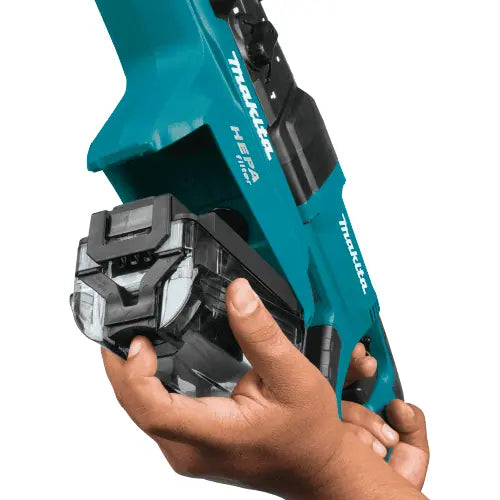

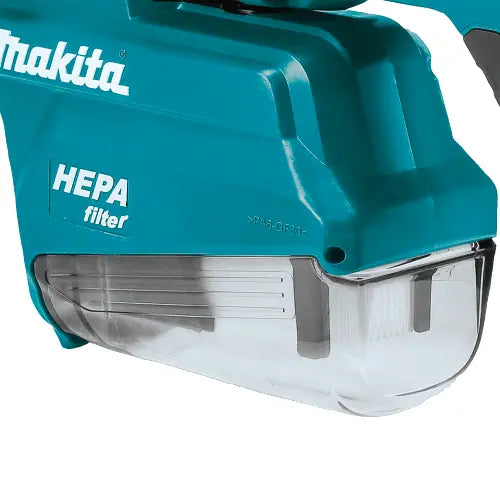

• Transparent dust container provides needed visibility in determining when the dust box needs to be emptied

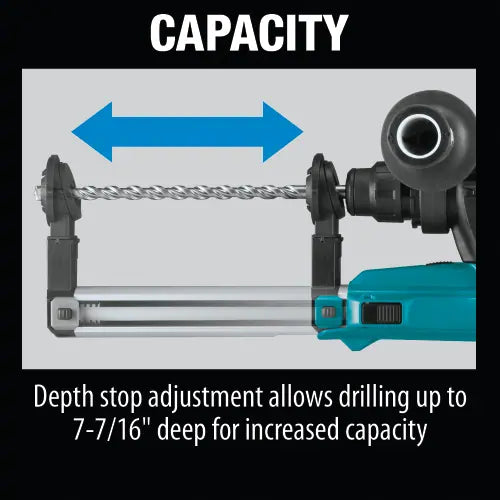

• Depth stop adjustment allows drilling up to 7-1/2" deep for increased capacity
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds

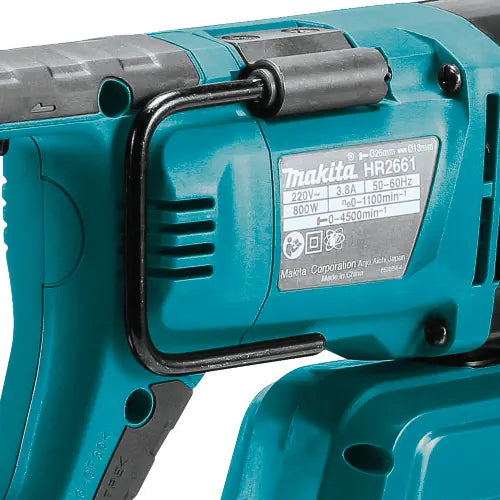

• Retractable hook allows tool to remain close by but never in the way
• 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping Only" for multiple applications
• Variable speed trigger enables user to match the speed to the application for greater versatility
• 40 bit angle settings allow the bit to be set at different positions for operating convenience
• Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort

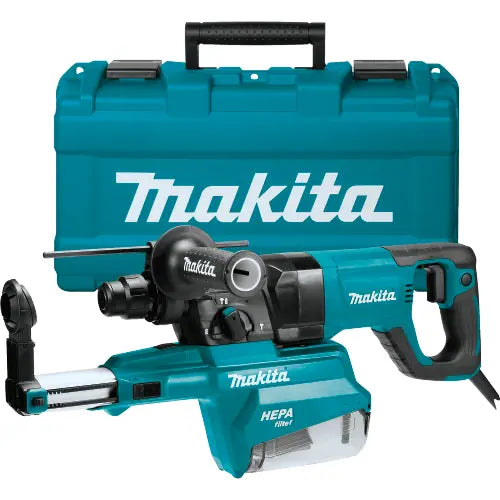

Includes

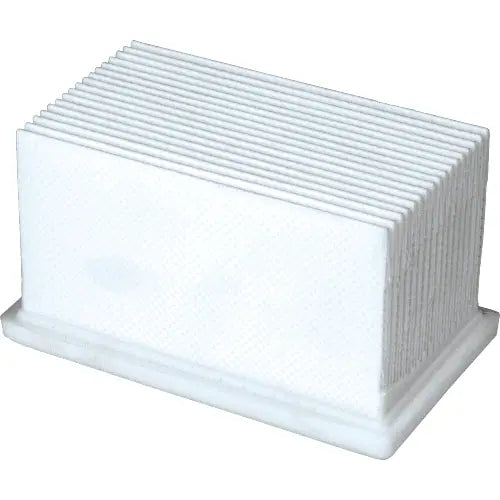

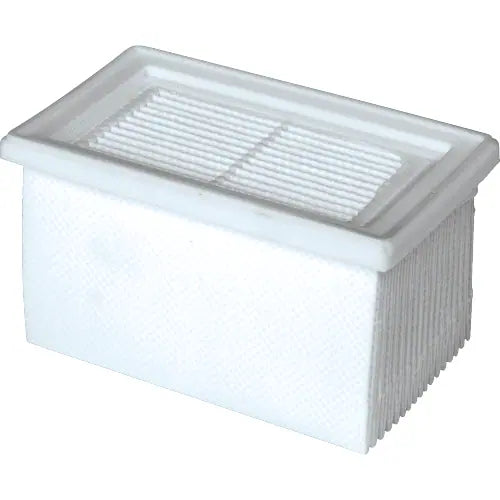

• (1) Dust Extractor Attachment with HEPA Filter (135905-6)

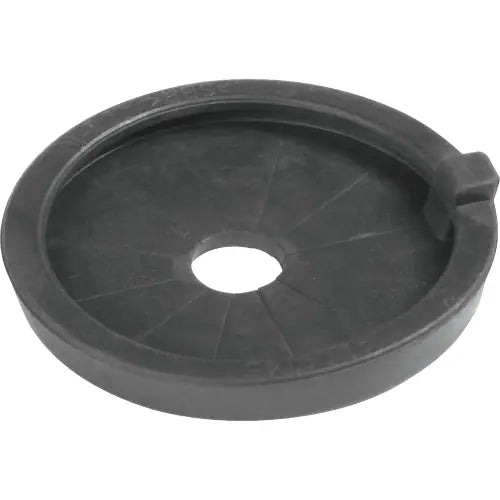

• (6) Sealing Cap (424474-5)
• (1) Side Handle
• (1) Depth Rod
• (1) Tool Case

Specifications

• AMPS: 8
• Max. Capacity (concrete drilling): 1"
• Optimum Range (concrete drilling): 1/4" - 5/8"
• Max. Hole Depth: 7-7/16"
• Max. Capacity (concrete drilling w/ core bit): 3-1/8"
• Impact Energy (ft.lbs.): 2.1
• Impact Energy (Joules): 2.9 J
• Blows Per Minute (variable speed): 0 - 4,500 BPM
• No Load Speed (variable speed): 0 - 1,100 RPM
• HEPA filter: Yes
• Container Hole Count Capacity: 36 holes of dimension 3/8”x2-3/8”
• Filter Life (Approx. container fillings): 200
• Vibration Control: Yes
• Vibration (m/s²): 9.5
• Sound Rating (decibels): 90 dB(A)
• Overall Length: 18-7/8"
• Cord Length (ft): 13.1'
• Net Weight: 9.7 lbs.
• Bit Type: Accepts SDS-PLUS
• Dust Collection: Yes
• Power Type: Corded
• Bind-Up Control: No
• Shipping Weight: 18.081 lbs.
