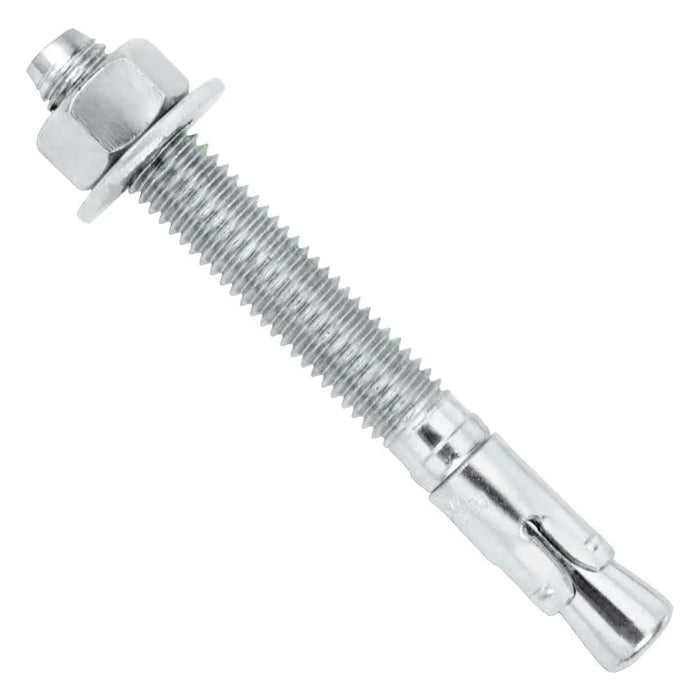

DeWalt POWER-STUD®+ SD1 3/4" x 6-1/4" Wedge Expansion Anchor - 20 Qty
Package Quantity: 20
100% Satisfaction Guaranteed
We'll exchange or refund any product that doesn't meet your expectations.
The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Applications
- Structural connections, i.e., beam and column anchorage
- Safety-related attachments
- Barriers and guards
- Fencing and railing
- Mezzanines and racking
- Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
- Trapeze / overhead utilities
- Ledgers, angles and brackets
- Equipment anchorage
- Seismic and wind loading (SDC A - F)
Specifications
- Type: Wedge Expansion Anchor
- Finish: Zinc Plated
- Material: Carbon Steel
- Anchor Diameter: 3/4"
- Useable Length: 6-1/4"
- Thread Length: 3-3/4"
- Quantity: 20
- Thread Version: UNC Threaded Stud
- Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Concrete over steel deck, Grouted concrete masonry (CMU)
- Approvals & Listings: ICC-ES - ESR-2818 and ESR-2966, Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC, Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193,Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading, Tested in accordance with ASTM E488 and ICC-ES AC01 for use in masonry, City of Los Angeles, LABC and LARC Supplement (within ESR-2818 and ESR-2966), Florida Building Code, FBC Supplement including HVHZ (within ESR-2818 and ESR-2966), UL Listed - File No. EX1289, FM Approvals (Factory Mutual)
- Prop 65 Generic Warning: No
