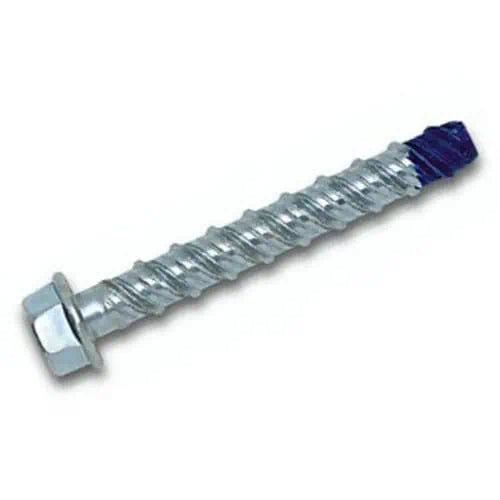

DeWalt Wedge Bolt 410 Stainless Steel Screw Anchor

The Wedge-Bolt anchor is a one piece heavy duty anchor with a finished hex head. It is simple to install, easy to identify, fully removable and vibration resistant. the Wedge Bolt has many unique features and benefits that make it well suited for many applications in a variety of base materials. Optimum performance is obtained using a combination of patented design concepts. The steel threads along the anchor body self tap into the hole during installation and provide positive keyed engagement

Features

• One-piece design eliminates possibility of lost anchor parts or improper assembly
• Can be installed with an impact wrench or conventional hand socket
• Fast installation and immediate loading minimizes downtime
• High load capacities and full contact along thread length
• Diameter and length ID stamped on head of each hex head anchor for easy inspection
• Finished hex head provides attractive appearance and eliminates tripping hazard
• Can be installed closer to the edge than traditional expansion anchors
• Versatile installation in concrete, block and brick masonry
• Ratchet teeth on underside of hex washer head lock against the fixture
• Removable and will not leave components in the hole

Applications

• Racking and Shelving
• Support Ledgers
• Fencing
• Maintenance
• Material Handling
• Storage Facilities
• Repairs
• Retrofits

Specifications

• Head Styles: Hex Head
• Finish: Zinc Plated
• Approvals and Listings: Tested in accordance with ASTM E488 and AC106 criteria
• Suitable Base Materials: Normal-weight concrete, Structural lightweight concrete, Grouted concrete masonry (CMU),Brick masonry
