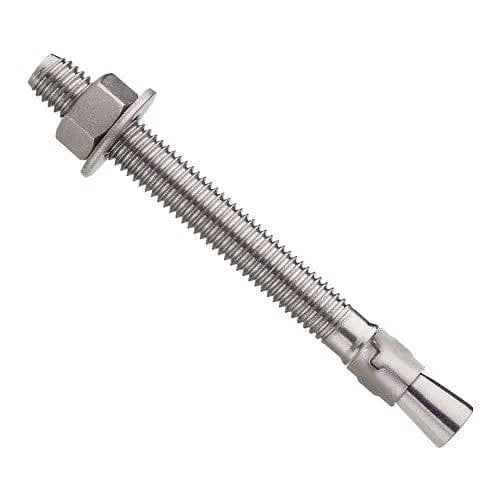

DeWalt POWER-STUD‚® 5/8" x 3-1/2" 304SS Wedge Expansion Anchor - 25 Qty

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry.

Features

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

Specifications

• Lighting standards and base plates
• Sills and support ledgers
• Retrofit projects and machinery anchorage
• Food and beverage facilities
• Water treatment plants and marine applications

Specifications

• Anchor Size: 5/8" x 3-1/2"
• Anchor Diameter: 5/8"
• Anchor Length: 3-1/2"
• Thread Length: 2"
• Anchor Material: 304 Stainless Steel
• Head Style: Threaded Stud (UNC)
• Piece Count: 25
• Suitable Base Materials: Normal-weight Concrete, Lightweight Concrete, Grouted Concrete Masonry (CMU)

Approvals & Listings

• Tested in accordance with ASTM E488
• Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
