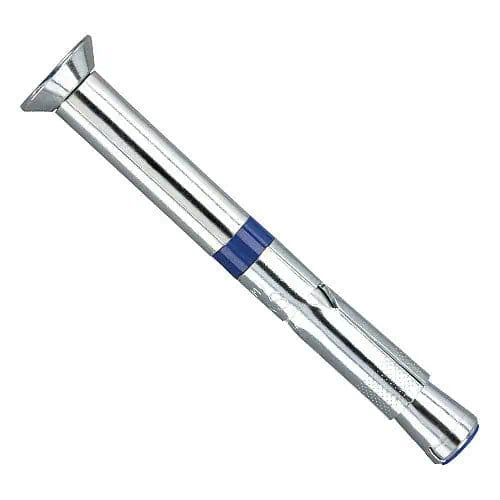

DeWalt POWER-BOLT‚® 3/8" x 6" Carbon Steel Flat Head Sleeve Anchor - 50 Qty
Package Quantity: 50
100% Satisfaction Guaranteed
We'll exchange or refund any product that doesn't meet your expectations.
The Power-Bolt anchor, is a heavy duty sleeve style, self-locking anchor which is vibration resistant and removable. It is available with a finished hex head or flat head with a hex key insert and can be considered for use in concrete, block, brick, or stone. Expansion occurs at two locations within the drilled hole. First, the cone is pulled into the large triple-tined expansion sleeve, developing a mid-level, compression force. Further turning causes the threaded bolt to advance into the threads of the expander cone, forcing its four sections outward. This action engages the base material deep in the anchor hole. The bolt and cone remain locked together which resists loosening under vibratory conditions. The Power-Bolt is also designed to draw the fixture into full bearing against the base material through the action of its flexible compression ring. As the anchor is being tightened, the compression ring will crush if necessary to tightly secure the fixture against the face of the base material. The internal bolt of the Power-Bolt is removable and reusable in the same anchor sleeve making it suitable for applications such as mounting machinery which may need to be removed for service and for temporary applications such as heavy duty form work.
Features
- High load capacity
- Two-level expansion mechanism
- Internal high strength bolt is removable and reusable
- Compression zone in sleeve clamps fixture to the base material
- Low profile finished head design
- Countersunk flat head option
Applications
- Base plates and racking
- Guards and bumpers
- Mounting machinery
- Mezzanines and support ledgers
- Conveyors and material handling
- Barriers and railing attachments
Specifications
- Anchor Size: 3/8" x 6"
- Drill Diameter: 3/8"
- Minimum Embedment Depth: 2"
- Piece Count: 50
- Head Style: Flat Head
- Anchor Material: Zinc Plated Carbon Steel
- Approval: Tested in accordance with ASTM E488
- Suitable Base Material: Normal-weight concrete, Lightweight concrete, Grouted Concrete Masonry (CMU), Hollow CMU, Brick Masonry, Stone
