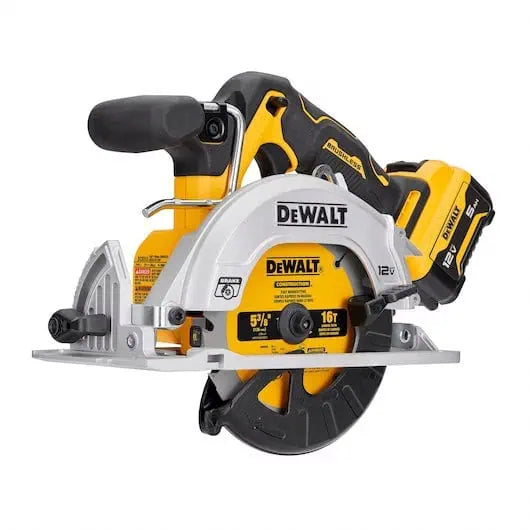

DeWalt XTREME 12V MAX* 5-3/8" Brushless Cordless Circular Saw Kit

Get the power and cutting depth of corded with the portability and convenience of cordless with the XTREME 12V MAX* 5-3/8" Brushless Cordless Circular Saw Kit. As part of the DEWALT XTREME Sub-Compact Series, this circular saw delivers high performance and precision for accurate cuts in a variety of materials. Its lightweight build lets you quickly adjust the bevel capacity without additional tools and attachments. This tool's blade helps minimize accidental cuts by automatically stopping when the trigger is released. When the job is done, conveniently store the tool using the integrated rafter hook.

Features

• Optimized efficiency Do more with the high-output brushless motor that delivers enhanced cutting performance compared to brushed motors
• High maneuverability with the saw's compact design
• Pro-grade cuts 5-3/8" blade size allows for a maximum 1-3/4" depth of cut at 90° and a maximum 1-1/4" depth of cut at 45°
• Adjustable bevel capacity from 0-50° using the tool-free bevel lever
• Convenient storage on the jobsite with built-in rafter hook
• Safely avoid accidental cuts with brake that rapidly stops the blade when the trigger is released
• Brighten dark work areas with on-board LED for enhanced visibility and cut accuracy
• Dust chute adaptable Works with Dewalt AirLock system or an optional, standard 32 mm dust extractor to minimize excess dust during cutting (system and extractor sold separately)
• Dewalt 12v MAX* compatibility Works with all brand 12V MAX* batteries

Includes

• DCS512 5-3/8" Circular Saw
• 5-3/8" Saw Blade
• Blade Change Wrench
• Optional Dust Chute
• Charger
• 12V MAX* 5.0Ah Battery (DCB126)
• Kit Bag
• Rip Guide

Specifications

• Battery Type: Lithium-Ion
• LED Light: Yes
• Battery Voltage: 12V
• Arbor Size: 3/8"
• Bevel Capacity: 50°
• Blade Diameter: 5-3/8"
• Maximum Depth of Cut at 45º: 1-1/4"
• Maximum Depth of Cut at 90º: 1-3/4"
• No Load Speed: 3600 RPM
• Weight: 4.9 lbs
• Warranty: 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
• Disclaimer: * Maximum initial battery voltage (measured without a workload) is 12 volts. Nominal voltage is 10.8
